2015-2020 Mercedes-Benz OEM Integrated Backup Camera System

MERCEDES-BENZ C-CLASS OEM Integrated Backup Camera



The FC-MB-NTG5 Video Interface Module will integrate rear and/or front cameras onto your existing OEM screen. Once installed, our system is ready for use without dealer activation or coding required.

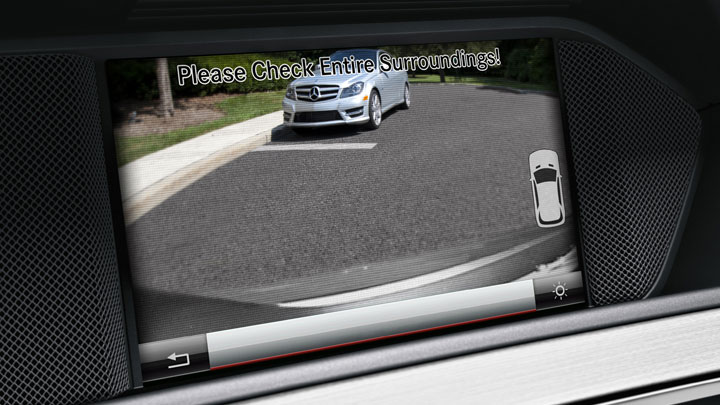

When in reverse, the rear camera will automatically display and revert back to your OEM screen when in park or drive. Furthermore, our FC-MB-NTG5 Video Interface Module will include Dynamic Parking Guidelines that move with the steering wheel to better assist you in parallel parking.

With a front camera, the image will automatically display when shifting out of reverse and will automatically time out after 10 seconds. Our 360 Front Camera includes a pair of static parking guidelines that are color coordinated and can be disabled if need be.

Our OEM Integrated FC-MB-NTG5 system does not require cutting, splicing or soldiering of any kind. Our OEM Integrated t-harnesses will directly connect onto the OEM t-harnesses for quick installation.



System Highlight Notes

• 2011 + Video Interface Module includes Dynamic Parking Guidelines

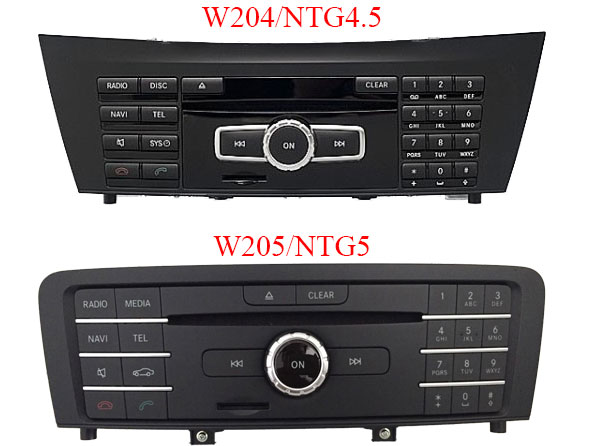

NTG5 Radio Example Shown Above

Mercedes-Benz C-Class Systems Compatibility

Mercedes Benz Model	Model Year	Compatible Monitor System
A-Class B-Class C-Class C-Class Coupe CLA CLS E-Class GLA GLC GLE GLK S-Class SLK	2016 + 2016 + 2015 + 2015 + 2015 + 2015 + 2015 + 2015 + 2016 + 2015 + 2015 + 2014 + 2015 +	(W167 / NTG5)  (W205 / NTG5)  (W205 / NTG5)  (W205 / NTG5)  (W205 / NTG5)  (W205 / NTG5)  (W213/ NTG5)  (W213/ NTG5)  (W205 / NTG5)  (W205 / NTG5)  (W205 / NTG5)  (W205 / NTG5)  (W205 / NTG5)

Looking for our NTG 4 System...? Check out the link below

Mercedes-Benz Video Interface Module Features

Input

• • Rear Camera Input
  • Front Camera Input



Output

• ACC 12v Power Output
• 12v Camera Power Output
• Constant 12v Output
• Ground Lead
• Reverse Trigger (for MT vehicles)

Board dimension

• 3.5" x 2.5" x 3/4"

Mercedes-Benz C-Class Camera Specs



Specifications

• 155° Off Axis View Cone
• IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
• UV Protected and Waterproof Cabling
• 0.1 LUX Rating for Optimal Low-light Performance
• 32° to 160° Temp Performance Rating
• Quick Connect/Disconnect
• Optional Parking Lines ON/OFF
• Optional Mirror Image ON/OFF
• Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)

Mercedes-Benz C-Class Video Interface Module Package Content



Features

• MB-NTG5 Video Interface Module
• AV Harness
• OEM Integrated Quad-Lock Connecter
• OEM Integrated LVDS Cable
• Flush Mount Camera
• Hole Saw
• RCA Extension Cable w/ Power and Ground Leads
• Camera Sealer Pad
• Installation Guide





* Please note, depending on your vehicle command system, the package content may differ. *
