2008-2016 Audi OEM Integrated Backup Camera System

AUDI MMI OEM Integrated Backup Camera System

     The AUD-MMI systems package is a high definition rear view camera and video integration module for your Audi vehicle with MMI Navigation. The OEM Integrated Sony CCD HD camera will mount upwards onto your license plate lip. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The AUD-MMI Interface Module has a dedicated rear view camera input and also a front camera input that will automatically trigger when going from reverse to drive and will time out after 15 seconds back to your OEM scree. This system is a simple OEM integration package that maintains your factory set up while upgrading your vehicle with an integrated backup backup camera system.

AUDI MMI Systems COMPATIBILITY

AUDI Model A4/S4/RS4 A5/S5/RS5 A6/S6/RS6 A7/S7/RS7 A8/S8/RS8 Q3/SQ3	Model Year 2008-2016 2008-2016 2008-2016 2008-2016 2008-2016  2008-2016	Multimedia System MMI (with 3G MMI) MMI (with 3G MMI) MMI (with 3G MMI) MMI (with 3G MMI) MMI (with 3G MMI)  MMI (with 3G MMI)
Q5/QS5 Q7/SQ7	2008-2016   2008-2016	MMI (with 3G MMI)  MMI (with 3G MMI)

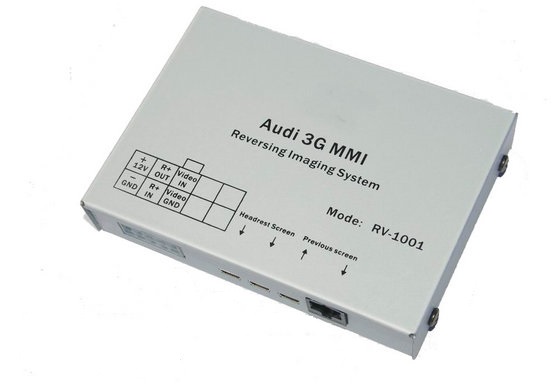

AUDI MMI Interface Module FEATURES



Input

• Plug & Play Installation using LVDS Cable
• 1 x dedicated Rear-View Camera Input
• 1 x dedicated Front-View Camera Input
• Factory Integrated T-Harness
•
•




Output

• 1 x Rear-View +12V Power Output
• 1 x Front-View +12V Power Output
•




Power

• Input power : 8V DC - 24V DC
• Consumption : 12W, Max



Board dimension

• 3 inches x 1 inch x 1 inch





Sony CCD HD Flush Mount Backup Camera FEATURES

Features

• Sony CCD HD Flush Mount Camera
• Vivid Color High Resolution
• 170° Wide Angle View
• Parking Guide Lines (can be turned on/off)
• Waterproof Ip68
• Shockproof



Specifications

Specification Terms	Product Values
Image Sensor	CCD HD Sony
Power Supply	DC12V±1V
Power	<1W
Effective Pixels	728*582
Resolution (TV Line)	520
Electronic Shutter	1/60, 1/10,000 sec
Lens Angle	170°
Min. Illumination	0.01lux
IP Rating	Ip68
S/N Ratio	≥48dB
Video Output	1.0vp-p.75Ω
Current Consumption	30-60mA
Operating Temp. (F)	-20~+100
Storage Temp. (F)	-40~+120
TV System	NTSC/PAL
White Balance	Auto





























AUDI OEM Integrated Backup Camera System PACKAGE CONTENT



• AUD-MMI Module
• AV Harness
• 2 x OEM Integrated LVDS Cable
• Audi OEM Integrated Tailgate Handle Camera
• Tailgate Handle Camera RCA Extension Cable
• Installation Guide
•
•


     Our fully integrated backup camera system uses a simple plug and play installation. Once installed, if you install the CANBUS connections, the system will automatically trigger when in reverse and display onto your existing OEM screen. Using the CANBUS connections, you'll unlock dynamic parking lines that move with the steering wheel to better assist you in parallel parking. Once you revert back to "P" or "D", the screen will revert back to OEM. Essentially, once installed and functioning, you'll have a fully integrated backup camera system that will function exactly like a factory installed system complete with the OEM Integrated Tailgate Handle to give you a true OEM look and feel.
