2013-2017 BMW Wireless CarPlay + OEM Integrated Backup Camera Combo Kit

BMW OEM Integrated CarPlay + Backup Camera System

The FC-BMW-NBT-CPC-Wireless OEM Integrated Backup Camera + CarPlay System includes everything you need to integrate a rear camera and CarPlay onto your existing OEM screen. Our plug and play system DOES NOT require dealer activation, wire cutting or splicing or any soldering for installation. Our OEM Integrated T-Harnesses will directly connect onto OEM harnesses to eliminate any installation issues. Once installed, the system is ready for use and will automatically trigger the backup camera when in reverse and revert back when in park or drive. Furthermore, our module will include dynamic parking guidelines that move with the steering wheel to better assist you in parallel parking.

Our CarPlay System will upgrade your BMW to includes Apple CarPlay, Android Auto, Screen Mirroring and much more. With our new CarPlay Systems, you'll be able to utilize all the CarPlay apps onto your BMW screen. No need for a separate controller at all! Our OEM Integrated CarPlay Systems will utilize your already existing iDrive remote to navigate through the CarPlay Apps. All audio will transmit through your vehicle speakers for a seamless integration. Here's the kicker, our system is now FULLY WIRELESS for both Apple and Android devices with a quick connect to any other phone. Want to connect someone else's phone? Simply plug any other phone into the provided USB for 8 seconds, unplug the phone and the system will automatically connect to the new phone wirelessly and display on your OEM screen.

The already included FMC Flush Mount Camera is designed to mount above the license plate lip and can be off-centered. With our Fish-Eye lens, even an off-centered camera will display a center view on your OEM screen.

System Highlight Notes*

• Apple CarPlay (wireless + wired)
• Android Auto (wireless + wired)
• iOS AirPlay (wireless screen mirror for iOS)
• Android Autolink (wired screen mirror for Android)
• Front & rear view camera in (PAL + NTSC)
• HDMI in (720P)
• USB multimedia playback (Lossless audio & FHD 1080P video)

BMW CarPlay System Features

Introducing our new FC-BMW-NBT-CPC-Wireless OEM Integrated CarPlay System for BMW NBT models. This comprehensive video interface module will integrate all the features of Apple CarPlay / Android Auto onto your existing BMW command system. Once installed, the system is ready for use without any dealer activation or coding required and DOES NOT require any cutting or splicing of OEM cables. This plug and play module will directly connect onto the back of your OEM screen and utilize your already existing harnesses for installation. The BMW-NBT-CPC-Wireless will have a provided USB cable to plug your phone into AND now includes Wireless Apple CarPlay / Android Auto. Once connected, you can use your iDrive remote to select your CarPlay application and also to skip to the next track or activate voice recognition such as Siri for Apple or Google Assistant for Android. This system is fully compatible with both iOS and Android phones. You will NOT lose any OEM functions with this installation but rather will gain CarPlay functionality. All steering wheel and radio buttons will remain the same and will also control CarPlay song selection and volume settings.

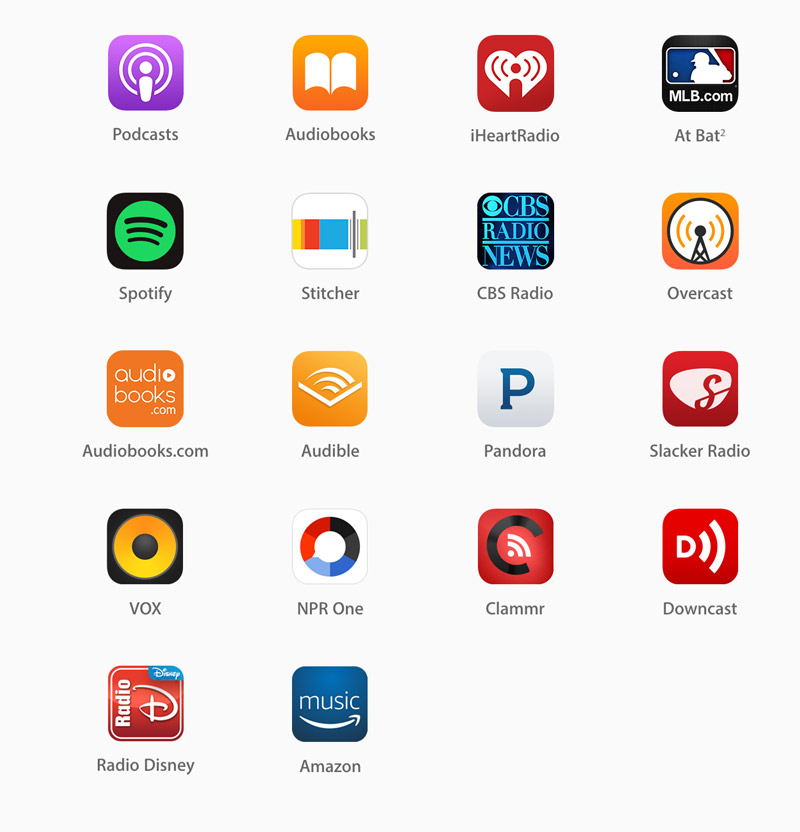

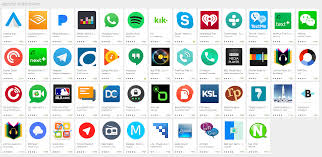

Enjoy all your favorite apps on your BMW screen

without having to have your phone in hand. Select

your desired application using your already

existing iDrive remote.

BMW CarPlay Systems Compatibility

BMW CarPlay Interface Module FEATURES

•
• Multimedia Interface I/O Spec:
  Input: RCA*2 (front & rear view camera), HDMI*1 (720P), 3.5mm jack female*1 (add on microphone), HSD*1 (LVDS)
  Output: HSD*1 (LVDS), Fakra*1 (WiFi & BT antenna), 3.5mm jack male*1 (audio L/R)

  Power Spec:
  Input power: 9V-16V
  Consumption: 6W

• Software highlights:
  1. Auto switch CarPlay appearance depending on car headlights.
  2. Adjustable WiFi channel for a better wireless experience.
  3. High performance audio with wide range equalizer.
  4. Multiple adjustable volumes.
  5. Adjustable microphone settings including microphone volume, echo canceling, sensitivity, etc.
  6. Support using factory microphone, also add-on MIC.
  7. Adjustable parking guideline.
  8. Multiple methods for display front camera.
  9. Press & hold 1 button for quick restart.
  10. Easy software update via USB extension, not require to remove OEM radio again.
  11. Visual settings user interface and easy to use.

BMW Backup Camera FEATURES

Features

• OEM Style FMC Flush Mount Camera
• Quick Connect/Disconnect
  Optional Parking Lines ON/OFF
  Optional Mirror Image ON/OFF


Specifications

580p Resolution

CMD Chipset
155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating

BMW Backup Camera + CarPlay System PACKAGE CONTENT

• BMW Backup Camera + CarPlay Video Interface Module
• OEM Integrated QuadLock Connector (AV Inputs)
• OEM Integrated LVDS Cable
• AV Harness
• Wifi/BT Antenna 2G + 5G
• USB Cable

 ** Please note, package content may differ depending on your vehicle command system and camera option **
