PORSCHE CAYENNE OEM Integrated Backup Camera System

This OEM  Integrated PORSCHE Rear-View Backup Camera kit fits all 2003-2014 Cayenne PCM models with or without navigation. The comprehensive Multimedia Video Interface integrates through a sub-board and ribbon cable connection to enable the viewing of external video sources such as the Backup Camera (provided in kit).



Please note that the tailgate handle camera may fit Cayenne models from 2010 and up.  All others will receive our FCS Flush Mount Camera.

$450.00
Availability: In stock
SKU
pcmint-cayennetgc

PORSCHE CAYENNE OEM Integrated Backup Camera

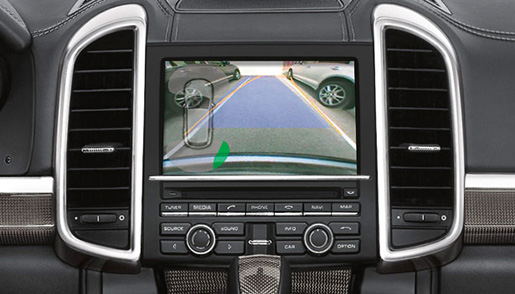

The PCMINT-TGC systems package is a high definition rear view camera and video integration module for your Porsche vehicle with or without Navigation. The OEM Integrated  backup camera replaces and mounts within the tailgate handle, once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The PCMINT Interface Module has a dedicated rear view camera input, aftermarket RGB Navigation input, and 3 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up while upgrading your vehicle with backup camera and full Multimedia Audio/Video integration.

porsche cayenne backup camera



Porsche Cayenne Systems COMPATIBILITY



  PORSCHE Model     Model Year     Multimedia System
Cayenne 2003-2008  PCM2.1
















  PORSCHE Model     Model Year     Multimedia System

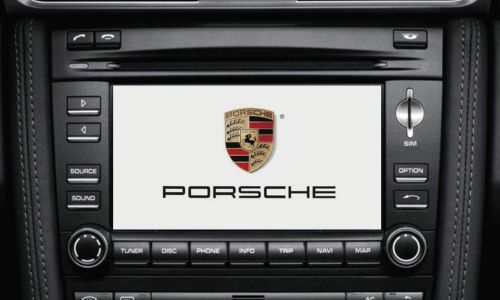

Cayenne 2009 PCM3.0















PORSCHE Model     Model Year     Multimedia System

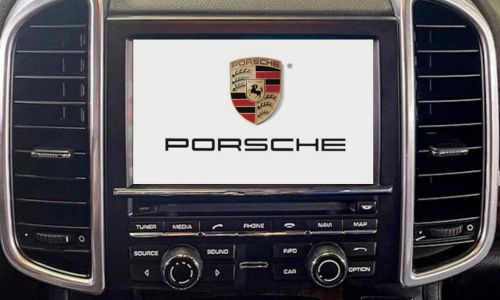

Cayenne 2010 and up PCM3.1

















PORSCHE CAYENNE Interface Module FEATURES



Input

    • installation by Sub-board Ribbon cable
    • DVD & NAVI control by through optional touch screen panel
    • 1 x dedicated Rear-View Camera input
    • 3 x A/V Inputs
    • 1 x LCD input



Output

    • 2 x CVBS output (video out for headrest monitor installation)
    • 4 x Audio select output
    • 1 x Cayenne output
    • Remote control & Toggle switch provided



Power

    • Input power : 8V DC - 24V DC
    • Consumption : 12W, Max



Board dimension

    • 130mm x 105mm x 22mm





PORSCHE CAYENNE Tailgate Backup Camera FEATURES



Features

    • Tailgate Handle Camera fitment
    • Trunk latch soft pad trigger
    • SONY CCD HD
    • Vivid Color High Resolution
    • 170° Wide Angle View
    • Parking Guide Lines (can be turned on/off)
    • Waterproof Ip68
    • Shockproof
    • Simple Installation



Specifications

Specification Terms   Product Values
Image Sensor  CCD HD Sony
Power Supply DC12V±1V
Power <1W
Effective Pixels  728*582
Resolution (TV Line)  520
Electronic Shutter  1/60, 1/10,000 sec
Lens Angle   170°
Min. Illumination  0.01lux
IP Rating  Ip68
S/N Ratio   ≥48dB
Video Output   1.0vp-p.75Ω
Current Consumption  30-60mA
Operating Temp. (F) -20~+100
Storage Temp. (F)  -40~+120
TV System NTSC/PAL
White Balance Auto





























PORSCHE CAYENNE OEM Integrated Backup Camera System PACKAGE CONTENT



    • PORSCHE CAYENNE PCM Car Video Interface Main Board
    • Sub-board
    • Remote control unit with IR cable or OSD Keypad
    • Cable set
    • Power Cable with protective filter
    • LCD Out cable
    • AV bundle cable
    • NAVI (RGB) cable
    • Mode switch cable
    • LCD cable
    • FPC cable
    • PORSCHE CAYENNE Tailgate Handle Camera (Sony CCD HD)
    • Power/Ground harness cable
    • 30FT Video cable
    • Installation Instructions
    • Owners Manual/Warranty Card





Please note: tailgate handle camera may only compatible with Porsche Cayenne models from 2010 and up.  Anything prior to 2001 will require a flush mount camera.

More Information
Make PORSCHE
Year 2003,2004,2005,2006,2007,2008,2009,2010,2011,2012,2013,2014
