DODGE RAM OEM Integrated Backup Camera System

DODGE RAM OEM Integrated Backup Camera System

Quick Overview

This OEM Integrated DODGE Rear-View Backup Camera kit fits all 2009-2018 DODGE RAM models with OEM radio equip. The comprehensive Multimedia Video Interface integrates through a simple plug and play connection to unlock and enable Video In Motion, viewing of external video sources such as Backup Camera (provided in kit), DVD player, TV tuner, Video Game Console, Smartphone, and optional Navigation on your factory built-in car monitor. You also have the option of upgrading to our Tailgate Handle Camera and even adding a front camera which can be triggered while driing.


The Plug & Play unlocks the following factory functions and enables:


- DVD, AUX, iPod, iPhone, Video Game Inputs
- SAT TV, Front Camera, Baby Cam etc.
- Rear-View Camera





** Please Note ** This system does NOT require dealer activation or programming. Once installed, this system is fully functiong and ready to go!

Availability: In stock

$425.00

* Required Fields

$425.00

Details

DODGE RAM OEM Integrated Backup Camera

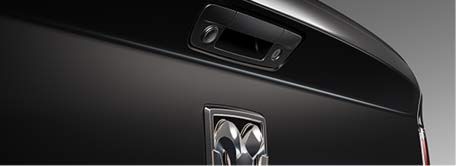

The Dodge Ram Backup Camera System is a high definition rear view camera and video integration module for your DODGE vehicle with MyGig Radio. The OEM Integrated backup camera mounts within the tailgate, once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The integration module is a fully programmed plug and play Interface that allows for Video In Motion and has a dedicated rear view camera input along with 2 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up and only takes a few simple steps to install, while upgrading your vehicle with backup camera and full Multimedia Video integration.


DODGE RAM Systems COMPATIBILITY



DODGE Model     Model Year   Interface System
Ram 2009-2018 with MyGig Radio





*Automatic Transmission ONLY

*Works with all MyGig Radios including: RER / REN / RHB / RBZ / RHR

*Note: NON U.S. Radios not supported: REP / RHP / REZ / REW / RBZ / REJ









DODGE RAM INTERFACE FEATURES



Input

    • Plug & Play installation by LCD Connector
    • Connected devices controlled through factory Steering Wheel buttons
    • 1 x Dedicated Rear-View Camera input
    • 2 x Video Inputs
    • USB Updateable



Output

    • Unlocks Screen for Video In Motion in all gears
    • 1 x Rear View Camera Image
    • 2 x Video Source Displays
    • 2 x 12V Output for external sources



Highlights

    • Single Plug and Play Connection for Installation
    • No wire cutting or other connections needed
    • Unlocks factory screen to display sources in motion
    • View any video source in all gears
    • Simple removal for Leased Vehicles









DODGE RAM OEM Integrated Style Backup Camera FEATURES


Features


    • Tailgate Camera fitment
    • SONY CCD HD
    • Vivid Color High Resolution
    • 170° Wide Angle View
    • Parking Guide Lines (can be turned on/off)
    • Waterproof Ip68
    • Shockproof
    • Simple Installation



Specifications

Specification Terms   Product Values
Image Sensor  CCD HD Sony
Power Supply DC12V±1V
Power <1W
Effective Pixels  728*582
Resolution (TV Line)  520
Electronic Shutter  1/60, 1/10,000 sec
Lens Angle   170°
Min. Illumination  0.01lux
IP Rating  Ip68
S/N Ratio   ≥48dB
Video Output   1.0vp-p.75Ω
Current Consumption  30-60mA
Operating Temp. (F) -20~+100
Storage Temp. (F)  -40~+120
TV System NTSC/PAL
White Balance Auto





























DODGE RAM Backup Camera System PACKAGE CONTENT



    • Multimedia Interface
    • Plug & Play Multimedia Harness
    • OEM Style DODGE Rear View Tailgate Handle Camera (Sony CCD HD)
    • Power/Ground harness cable
    • 35FT Video cable
    • Installation Instructions
    • Owners Manual/Warranty Card



Additional Information

Make DODGE
Year 2009,2010,2011,2012,2013,2014,2015,2016,2017,2018

Safety Warning

Your safety is of utmost importance here at Emerald Integrations.

Check your state laws and ordinances to ensure you fully understand any restrictions applicable to this product in your jurisdiction prior to purchase and/or use. Emerald Integrations does not assume any responsibility for any fines, penalties, or damages that may be incurred as a result of any state law or ordinance relating to use of the product. IT IS THE USER'S RESPONSIBILITY TO USE OUR DEVICES IN COMPLIANCE WITH ALL APPLICABLE LAWS AND ORDINANCES.
