A3 OEM Integrated Backup Camera

The A3INT-DFC systems package is a high definition rear view camera and video integration module for your vehicle with or without Navigation. The OEM Integrated backup camera mounts above the license plate area, once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The A3INT Interface Module has a dedicated rear view camera input, aftermarket RGB Navigation input, and 3 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up while upgrading your vehicle with backup camera and full Multimedia o/Video integration.

Video Interface Module contains PIP & NBT (Dynamic Parking Lines) - Parking Assistance System

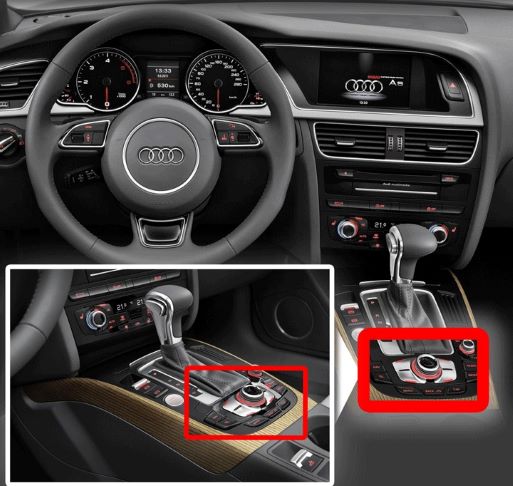

Audi EXT MMI

A3 Systems COMPATIBILITY

Model	Model Year	Multimedia System
A3	2013-2016	LCD

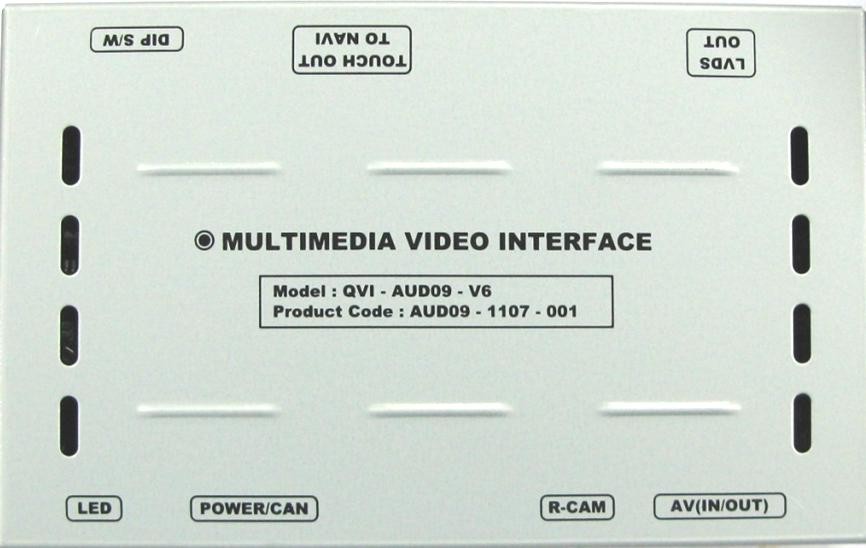

A3 Interface Module FEATURES

Input

Plug & Play installation by LVDS cable
DVD & NAVI control by through optional touch screen panel
1 x dedicated Rear-View Camera input
3 x A/V Inputs
1 x LCD input

A3 Module

Output

2 x CVBS output (video out for headrest monitor installation)
1 x o output
1 x LCD output
Factory button function & provided remote control

Power

Input power : 8V DC - 24V DC
Consumption : 12W, Max

Board dimension

130mm x 105mm x 22mm

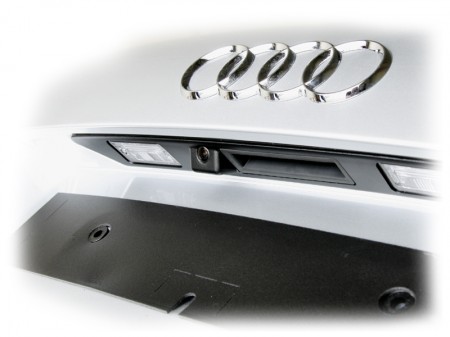

A3 Flush Mount Backup Camera FEATURES

Features

Flush Mount Fitment
Vivid Color High Resolution
170° Wide Angle View
Parking Guide Lines (can be turned on/off)
Waterproof Ip68
Shockproof
Simple Installation

Specifications

155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)
