This OEM Integrated CHRYSLER Rear-View Camera kit fits all 2011-2014 200 and 200C models that are equipped with the 5.0", 6.5" or 8.4" MyGig or Uconnect screens. The system includes the factory Chrysler harness that connects to the vehicle screen and the oem style backup camera that integrates seamlessly.
PLEASE NOTE:
All Chrysler, Jeep, Dodge & Ram harness systems will require DEALER ACTIVATION
Some Chrysler models may not program successfully with our programmer. In this case, we will request to have it shipped back to us for a refund and you will need to visit a local dealership for activation.

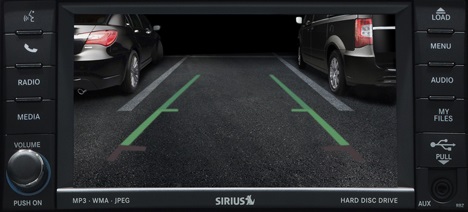

The FC-CJDR system package is a comprehensive high definition Rear View Camera and Factory Connect Harness for your CHRYSLER. The OEM style Rear View Camera is mounted under the license plate lip and sits at a fixed angle pointing down and out. Using the provided RCA extension cable, our FC camera connects to the Factory Integarted CHRYSLER Harness behind the existing factory screen. Once the vehicle is placed into reverse, the high resolution image of the backup camera will automatically appear on the factory display for safe navigation. Our OEM Integrated Backup Camera System will maintain your factory setup and simply add the rear camera function onto your existing screen.
CHRYSLER 200 Systems COMPATIBILITY
CHRYSLER Model
Model Year
Multimedia System
200
2011-2014
MUST HAVE MyGig
200c
2011-2014
MUST HAVE MyGig
CHRYSLER 200 Factory Connect Harness FEATURES
Features
Factory CHRYSLER Connect Harness
Plug & Play Configuration*
Quick Connect to Video Cable and Rear Camera
Automatic Reverse trigger activation
Rear Camera Input (RCA)
Parking Guide Line Option (ON/OFF)
CHRYSLER 200 Backup Camera FEATURES
Specifications
155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)

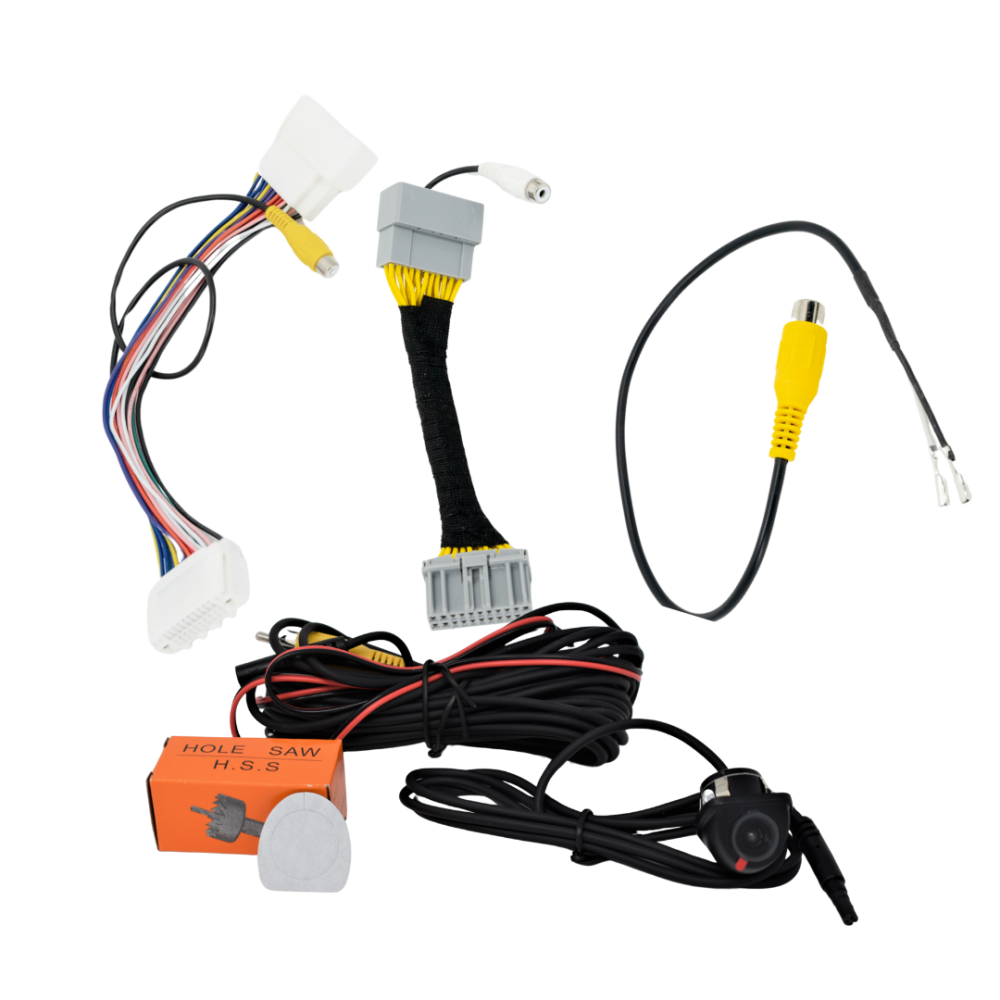

CHRYSLER 200 OEM Integrated Backup Camera System PACKAGE CONTENT
CHRYSLER Factory Connect Harness - CJDR
CHRYSLER OEM Style Universal Mount Backup Camera
30FT Video Cable w/ Power/Ground Leads
Camera Sealer Pad
Installation Guide
PLEASE NOTE:
Package content may differ depending on camera options selected.
All Chrysler, Jeep, Dodge & Ram harness systems will require DEALER ACTIVATION either before or after the backup camera installation.
Some Chrysler models may not program successfully with our programmer. In this case, we will request to have it shipped back to us for a refund and you will need to visit a local dealership for activation.
