This OEM Integrated CHRYSLER Rear-View Backup Camera kit fits all 2008-2012 CHRYSLER ASPEN models with MyGig Radio. The comprehensive Multimedia Video Interface integrates through a simple plug and play connection to unlock and enable Video In Motion, viewing of external video sources such as Backup Camera (provided in kit), DVD player, TV tuner, Video Game Console, Smartphone, and optional Navigation on your factory built-in car monitor.

The Plug & Play backup camera system unlocks the following factory functions and enables:

- DVD, AUX, iPod, iPhone, Video Game Inputs
- Navigation address inputs, manage routes, and points of interest while in motion
- XM, CD, and Radio restrictions
- SAT TV, Front Camera, Baby Cam etc.
- OnStar on screen dialing
- Rear-View Camera

$359.00
Availability: In stock
SKU
GCH-MYGIGHS-CASP

CHRYSLER ASPEN OEM Integrated Backup Camera

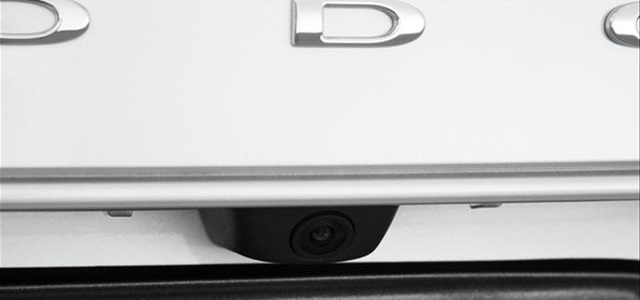

The Chrysler Aspen Backup Camera systems package is a high definition rear view camera and video integration module for your CHRYSLER vehicle with MyGig Radio. The OEM Integrated backup camera mounts above the license plate area. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The Integration Module is a fully programmed plug and play Interface that allows for Video In Motion and has a dedicated rear view camera input along with 2 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up and only takes a few simple steps to install, while upgrading your vehicle with backup camera and full Multimedia Video integration.


CHRYSLER ASPEN Systems COMPATIBILITY



CHRYSLER Model     Model Year   Interface System
Aspen 2008-2012 with MyGig Radio







*Works with all MyGig Radios including: RER / REN / RHB / RBZ / RHR

*Note: NON U.S. Radios not supported: REP / RHP / REZ / REW / RBZ / REJ









CHRYSLER ASPEN INTERFACE FEATURES



Input

    • Plug & Play installation by LCD Connector
    • Connected devices controlled through factory Steering Wheel buttons
    • 1 x Dedicated Rear-View Camera input
    • 2 x Video Inputs
    • USB Updateable



Output

    • Unlocks Screen for Video In Motion in all gears
    • 1 x Rear View Camera Image
    • 2 x Video Source Displays
    • 2 x 12V Output for external sources



Highlights

    • Single Plug and Play Connection for Installation
    • No wire cutting or other connections needed
    • Unlocks factory screen to display sources in motion
    • View any video source in all gears
    • Simple removal for Leased Vehicles









CHRYSLER ASPEN OEM Integrated Style Backup Camera FEATURES


Features

    • SONY CCD HD
    • Vivid Color High Resolution
    • 170° Wide Angle View
    • Parking Guide Lines (can be turned on/off)
    • Waterproof Ip68
    • Shockproof
    • Simple Installation



Specifications

Specification Terms   Product Values
Image Sensor  CCD HD Sony
Power Supply DC12V±1V
Power <1W
Effective Pixels  728*582
Resolution (TV Line)  520
Electronic Shutter  1/60, 1/10,000 sec
Lens Angle   170°
Min. Illumination  0.01lux
IP Rating  Ip68
S/N Ratio   ≥48dB
Video Output   1.0vp-p.75Ω
Current Consumption  30-60mA
Operating Temp. (F) -20~+100
Storage Temp. (F)  -40~+120
TV System NTSC/PAL
White Balance Auto





























CHRYSLER ASPEN Backup Camera System PACKAGE CONTENT



    • Mulitmedia Interface
    • Plug & Play Multimedia Harness
    • OEM Style CHRYSLER Rear View Camera (Sony CCD HD)
    • Power/Ground harness cable
    • 35FT Video cable
    • Installation Instructions
    • Owners Manual/Warranty Card



More Information
Make CHRYSLER
Year 2008,2009,2010,2011,2012
